Turntables

Turntables Specifications

Available with either a pneumatic rotation design to provide 90° rotation or our electric rotation design to provide 90°, 180°, 270° or continuous rotation with a 4,000 lbs. maximum, centered load capacity. Conveyor speeds are standard at 30, 45, or 60 FPM.

Like all Alba conveyor, our turntables are supplied with a standard two-year warranty. For easier installation, our units come pre-tested and ship fully assembled.

Turntables Features

• Table Diameters: 72”, 75", 78”, 82”, 84", 86” and 92”
• Roller Centers: 2.75”, 3.25”, 3.75”, 4”, 4.5” and 6”
• RC-40 or RC-60 Chain
• Effective Widths: Range from 44” to 86”
• Width: 48" to 60" Effective Widths on Roller Deck
• Rotation: 90°, 180°, 270° or Continuous Rotation
• Load Capacity: 4,000 lbs. Maximum Capacity with Centered Load

• Note: Specifications vary by model. Call for More Details.

• Two (2) Year Warranty
• Welded, Structural Steel Frame Construction
• 230-460/3/60 Primary Voltage
• High Side CDLR Drive Mounting
• 30, 45 and 60 FPM Fixed Conveyor Speed
• Scalloped Type Roller Chain Guard #10 Gauge and #16 Gauge Drive Chain Guard
• Units Typically Shipped Fully Assembled to Minimize Installation Time
• Conveyors Fully Tested Prior to Shipment

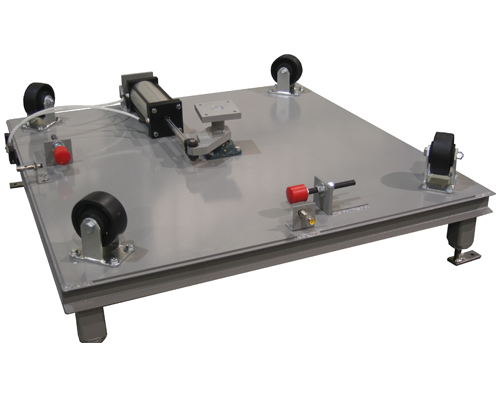

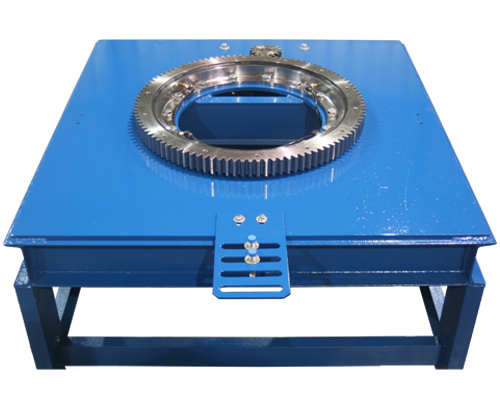

• Pneumatic or Electric Base

Turntables Brochure

View Brochure

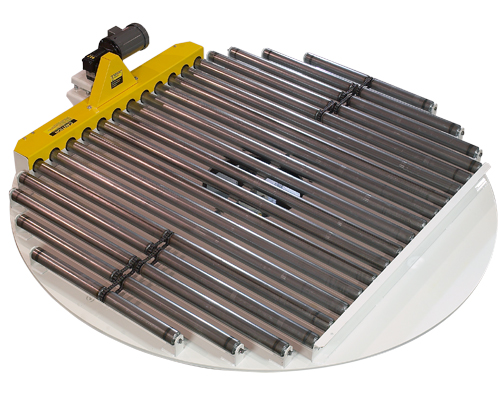

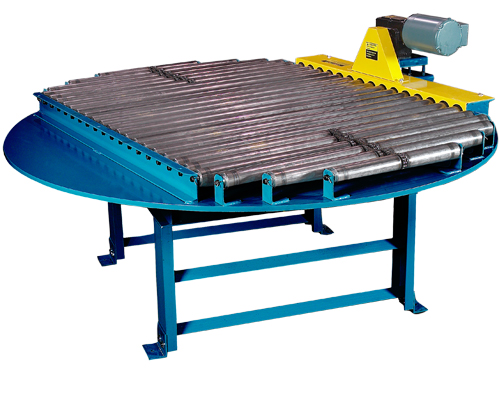

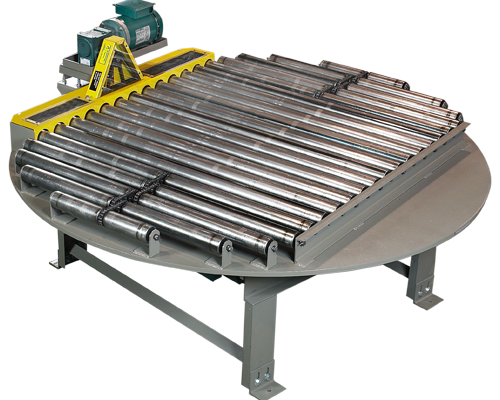

Turntables Photos
