Squid Ink SQ-LFX Laser Fume Extractor

Squid Ink SQ-LFX Laser Fume Extractor Specifications

TECHNICAL SPECIFICATIONS

• Dimensions – 29” (H) x 17” (W) x 20” (D) (730mm x 430 mm x 515 mm)
• Cabinet Construction – Brushed stainless steel
• Airflow / Pressure – 115v – 223cfm / 96mbar 230v – 380m³/hr / 96mbar
• Electrical Data – 90 – 257v 1ph 50/60Hz, Full load current:12.5 amps /1.1kw
• Noise Level – < 60dBA
• Weight – 121lbs (55kg)
• Approvals – CE, UL

PRE FILTER SPECIFICATIONS

• Surface Media Area Approximately – 2.97m²
• Filter Media – Glass Fibre
• Filter Media Construction – Folded Pleat
• Filter Housing – Cardboard
• Filter Efficiency – F8 (92% @ 0.8 microns)

COMBINED FILTER SPECIFICATIONS

• HEPA Filter Media – Glass Fibre
• HEPA Media Construction – Maxi Pleat With Webbing Spacers
• Filter Housing – Zintec Mild Steel
• Treated Activated Carbon – 15kgs
• Filter Efficiency – 99.997% @ 0.3 microns

Squid Ink SQ-LFX Laser Fume Extractor Features

Ease of Operation with IQ

The SQ-LFX has been enhanced with BOFA’s iQ Operating System, reverse-flow air filter (RFA), and advanced carbon filter (ACF) technology and packs a powerful range of unique features into one compact unit. The iQ Operating System provides numerous benefits: operators benefit from the ease of operation and clarity of real-time information and the system provides a cache of analytical data, enabling users to download performance and operating parameters for evaluation purposes.

Performance With Safety In Mind

The SQ-LFX design features keep your air filtration system running at peak performance levels while reducing your maintenance downtime. ACF technology ensures the safe capture and removal of hazardous fumes by balancing the system’s air flow rates with the type, depth, and surface area of SQ-LFX’s carbon filters. To increase your filter life, the unit is designed with reverse flow air technology to cause larger particulates to fall out of the airstream into the filter’s drop out chamber, resulting in less particulates being trapped in the filter and prolonging the life of your filter.

FEATURES OF THE SQ-LFX

• iQ Operating System
• Automatic Flow Controler
• Reverse Flow Air filter technology (RFA)
• Advanced Carbon Filter technology (ACF)
• Auto sensing voltage (90-257v) – For global use
• High contrast display
• Real time airflow reading
• Filter status warnings
• Independent filter condition monitoring
• Run safe (filters must be installed correctly for the unit to operate)
• Low cost replacement filters
• Low noise levels
• Lockable castors
• Operating Environment – 34°F – 104°F (1° – 40°C)
• Small footprint
• Remote diagnostics via USB
• VOC gas sensor (Volatile Organic Compound)
• Interfacing with host laser
• Remote stop / start interface
• Filter change / System fail signal

Squid Ink SQ-LFX Laser Fume Extractor Brochure

View Brochure

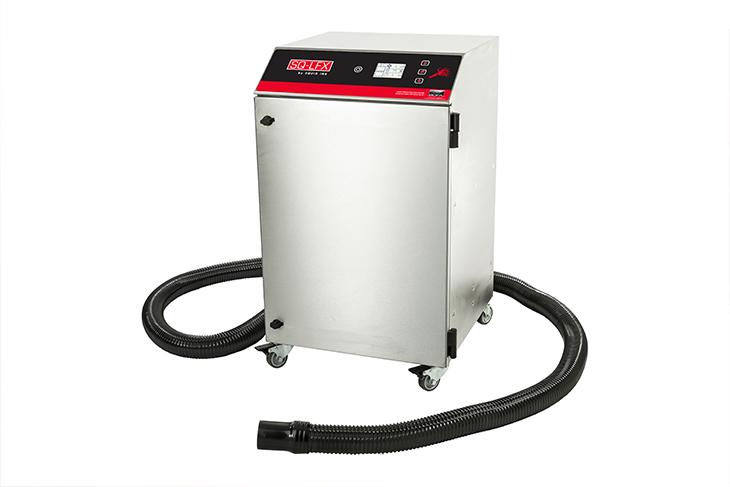

Squid Ink SQ-LFX Laser Fume Extractor Photos
