Squid Ink SQ-Laser

Squid Ink SQ-Laser Specifications

SYSTEM SPECIFICATIONS

• Print Technology – CO2 laser coding system, full sealed RF-excited metal tube
• Laser Wavelength – 9.3μm or 10.6μm
• Laser Galvanometer – High-precision 2D high-speed scanning galvanometers
• Cooling Method – Atmospheric air-cooled
• Dust Way – Sealed
• Power Consumption – 500W – 1000W (110VAC, 60Hz)
• Marking Focal Length – 100mm – 190mm (133mm currently on SQ-10 & SQ-30)
• Position Accuracy– 0.01mm
• Minimum Line Width – 0.1mm
• Marking Area – 50mm X 50mm – 175mm X 175mm
• Assembly Line Speed Support – <120m/min
• Marking Speed – 800 – 1000 characters/second
• Character Size – Adjustable in marking range
• Marking Line Number – Code Rotation – 0 to 360°
• Software Features – Counter, lot counter, shift code, time and date, expiration date
• Operating Languages – English and Chinese
• Cabinet Construction – Heavy-duty cast aluminum
• SQ-10 Cabinet Dimensions – 29” (74cm) L x 6.25” (16cm) W x 7.25” (19cm) H
• SQ-30 Cabinet Dimensions – 29” (74cm) L x 5.375” (14cm) W x 7.5” (19cm) H
• SQ-30 Power Controller Dimension – 13” (33cm) L x 5.5” (14cm) W x 10.25” (26cm) H
• Electrical Requirements – 90 – 240 VAC, 50/60Hz
• Operating Environment – 40°F – 105°F (5°C – 40°C)
• Humidity Range – 10 – 90% relative humidity, non-condensing
• Packaged Weight – SQ-10: 56 lbs. (25kg); SQ-30: 67 lbs. (30kg)

Squid Ink SQ-Laser Features

Application Versatility

• Permanent coding of text, time and date, bar codes,
  serial numbering and more
• Quick and easy installation for both stationary and moving products
• Easily fits into production environments where space is limited
• Laser head can be rotated 90° in less than 5 minutes

Reliable & Economical

• No ink/consumables for lower cost of ownership
• Clean and eco-friendly coding system
• Rugged cast aluminum controller body
• IP54 rating ensures maximum reliability and uptime in demanding applications
• Integrated key switch and interlock relay for increased safety on the production floor

Optional Accessories

• Print Trigger – Optical, fiber optic, ultrasonic, laser, metal proximity, capacitive proximity
• Encoder – For operation with variable speed conveyors
• Mobile Stands – Heavy-duty stand with ability to rotate laser controller in any direction and easily raise and lower marking machine by a single operator; includes casters for easy transportation within plant
• Installation and Training – On-site installation and training available

Squid Ink SQ-Laser Video

Squid Ink SQ-Laser Brochure

View Brochure

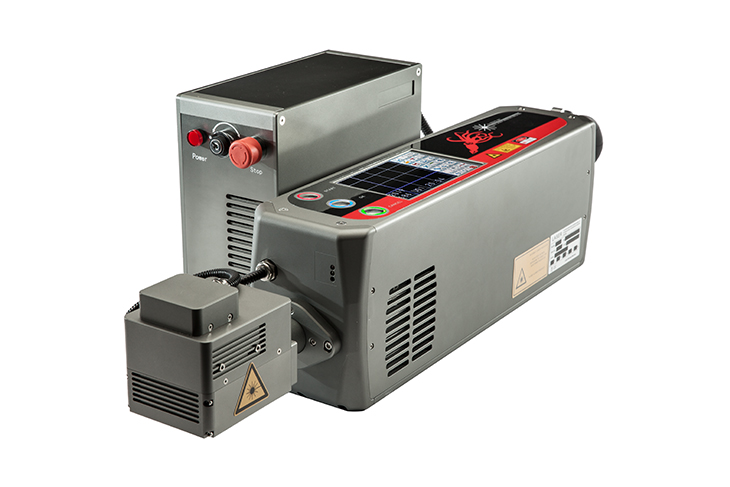

Squid Ink SQ-Laser Photos
