Squid Ink CoPilot 500

Squid Ink CoPilot 500 Specifications

SYSTEM SPECIFICATIONS

• Print Technology – Piezo impulse printhead technology
• Maximum Print Height – 2.8” (7.1 cm) per printhead, 5.6” (14.2 cm) total
• Vertical Print Resolution – 180 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
• Horizontal Print Resolution – 205 dpi
• Print Speed – CoPilot 500 (oil-based) 205 ft/min; CoPilot 500HS (oil-based) 300 ft/min; CoPilot 500 (solvent-based) 150 ft/min
• Time & Date – Internal real time clock with battery back-up
• Product Sensor – External diffuse beam photocell standard
• Communication Interface – One USB host and one Ethernet input
• Touchscreen – 4.3” (10.9 cm) full color touchscreen display
• Ink Cartridge Volume – 500ml cartridge or bag
• Low Ink Indicator – Status alert on touchscreen, LED light beacon optional
• Substrate Capabilities – Porous or non-porous surfaces
• Electrical Requirements – 100 – 240 VAC, 50/60 Hz
• Operating Environment – 34°F – 104°F (1° – 40°C) oil-based; 62°F – 100°F (17° – 37°C) solvent-based
• Agency Certifications – CE, TUV, FCC

SOFTWARE SPECIFICATIONS

• Time & Date – Full time and date functionality including expiration date and Julian Dates.
• Item Numbering – Sixteen counters, one of which can be a daily counter and production counter
• Shift Codes – Four programmable shift codes with automatic rollover
• Bar Codes – All standard bar codes including 2D
• Fonts – Arial, Arial Bold, Arial International, Arial Monospaced, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font Software
• Logos – Most image files supported with Orion software
• Printing Features – Reverse, invert, rotate, repeat; print on/off button
• Message Length – Up to 180” (4.5 m)
• Number of Messages – 4GB storage space will store approximately 1000+ messages
• Ink Usage – Show in Orion software
• User Data Prompts – Prompts for user input at start of print job by manual input on touchscreen
• Bluetooth Connectivity – For connectivity with Bluetooth keyboards
• Wireless Connectivity – For wireless connection between PC or tablet and printer controller
• Database Capability – Ethernet communication protocol for external communication
• Languages – English, Spanish, German, Chinese, Japanese, Korean, Russian

Squid Ink CoPilot 500 Features

Application Versatility

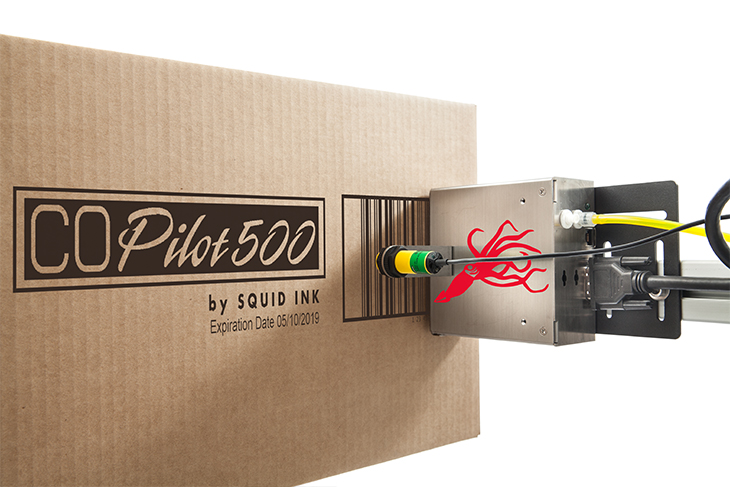

The system is capable of running oil-based or solvent-based inks to print up to 5.6” (2.8” from a single head) of hi-resolution characters, razor-sharp text, scannable bar codes, and great looking logos at 180 dpi. For non-porous applications, users have the option of utilizing Squid Ink’s solvent-based ink to print on a variety of non-porous products like coated cartons, polystyrene, and more. Squid Ink’s PZ-1000 ink for porous substrates offers ultra-low maintenance, eliminating the need for auto-priming functions and offering better ink utilization than competitive systems.

Engineered For Maximum Uptime

The CoPilot 500 is designed to meet the harsh demands of your application. The printer features a durable touchscreen, industrial strength printhead construction, and simple ink delivery system for industrial applications. You can be confident that CoPilot 500’s rugged design will withstand the most abusive industrial environments while providing superior quality print. The CoPilot 500 also features a large 500ml cartridge. The generous ink volume allows users to keep their line running, reducing downtime and maximizing ROI.

OPTIONAL ACCESSORIES

• Encoder – For operation with variable speed conveyors
• Bar Code Laser Scanner – Allows scan and print message retrieval
• External Light Beacon – Indicates low ink levels
• Wireless USB Device and Router – For wireless connectivity
• Windows Tablet – Pre-loaded with Orion software; includes mounting bracket with swivel arm, USB to ethernet cable and stylus
• Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
• Floorstand – Includes mounting brackets and legs with leveling feet; 59” (1.5m) total heights
• Starter Kit – Includes ink, cleaner and flush solution, printhead wipes, hand cleaner and latex gloves
