Squid Ink CoPilot 256

Squid Ink CoPilot 256 Specifications

SYSTEM SPECIFICATIONS

• Print Technology – Piezo impulse printhead technology
• Maximum Print Height – 1.4” per printhead, 2.8” total
• Vertical Print Resolution – 185 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
• Horizontal Print Resolution – 205 dpi
• Print Speed – Up to 135 feet/min. (41 m/min.) @ 205 dpi
• Time & Date – Internal real-time clock with battery back-up
• Product Sensor – External diffuse beam photocell standard
• Communication Interface – One USB host and one Ethernet input
• Touchscreen – 4.3” (10.9 cm) full-color touchscreen display
• Ink Cartridge Volume – 500ml cartridge or bag
• Low Ink Indicator – Message alert on touchscreen, LED light beacon optional
• Substrate Capabilities – Porous or Non-Porous surfaces
• Electrical Requirements – 100 – 240 VAC, 50/60 Hz
• Operating Environment – 34°F – 104°F (1° – 40°C)
• Agency Certifications – CE, TUV, FCC

SOFTWARE SPECIFICATIONS

• Time & Date – Full time and date functionality including expiration date and Julian Dates.
• Item Numbering – Sixteen counters, one of which can be a daily counter and production counter
• Shift Codes – Four programmable shift codes with automatic rollover
• Bar Codes – All standard bar codes including 2D
• Fonts – Arial, Arial Bold, Arial International, Arial Monospaced, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font
• Logos – Most image files supported with Orion Graphical Interface Software
• Printing Features – Reverse, invert, rotate, repeat. Print on/off button
• Message Length – Up to 180”
• Number of Messages – 4GB storage space will store approximately 1000+ messages
• Ink Usage – Shown in Orion™ PC Software
• User Data Prompts – Prompts for user input at start of print job by manual input on touchscreen
• Bluetooth Connectivity – For connectivity with Bluetooth keyboards
• Wireless Connectivity – For wireless connection between PC or tablet and printer controller
• Database Capability – Ethernet communication protocol for external communication
• Languages – English, Spanish, German, Chinese, Japanese, Korean, Russian

Squid Ink CoPilot 256 Features

INCREASED APPLICATION VERSATILITY

The system is capable of running oil-based or solvent-based inks to print up to 2.8” (1.4” from a single head) of hi-resolution characters, razor-sharp text, scannable bar codes, and great looking logos at 185 dpi. For non-porous applications, users have the option of using Squid Ink’s solvent-based inks for printing on a variety of products like coated cartons, plastics, glass, shrink wrap, metals and more. Squid Ink’s PZ-1000 ink for porous substrates offers low-maintenance performance, eliminating the need for auto-priming functions and offering better ink utilization than competitive systems.

USER-FRIENDLY SYSTEM

CoPilot 256’s 4.3” full-color touchscreen provides access to the system’s internal messages and print functions. Messages are created and edited on Squid Ink’s easy-to-use Orion™ PC Software and transferred via Ethernet or USB device. For larger applications, a virtually unlimited number of CoPilot 256 printing systems can be connected via Ethernet and controlled through one central Orion™ print station.

OPTIONAL ACCESSORIES

• Encoder – For operation with variable speed conveyors
• Bar Code Laser Scanner – Allows scan and print message retrieval
• External Light Beacon – Indicates low ink levels
• Wireless USB Device and Router – For wireless connectivity
• Windows Tablet – Pre-loaded with Orion software; includes mounting bracket with swivel arm, USB to ethernet cable and stylus
• Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
• Floorstand – Includes mounting brackets and legs with leveling feet; 59” (1.5m) total height
• Pigmented Ink Agitation System – Allows for printing of pigmented inks
• Starter Kit – Includes ink, cleaner and flush solution, printhead wipes, hand cleaner and latex gloves

Squid Ink CoPilot 256 Video

Squid Ink CoPilot 256 Brochure

View Brochure

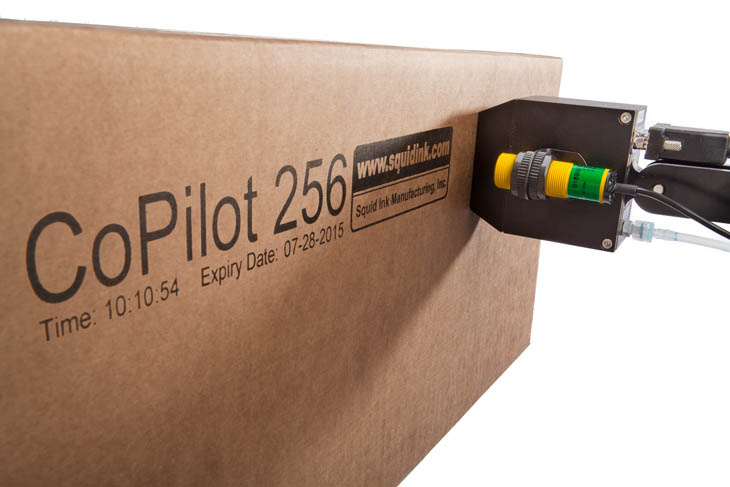

Squid Ink CoPilot 256 Photos
