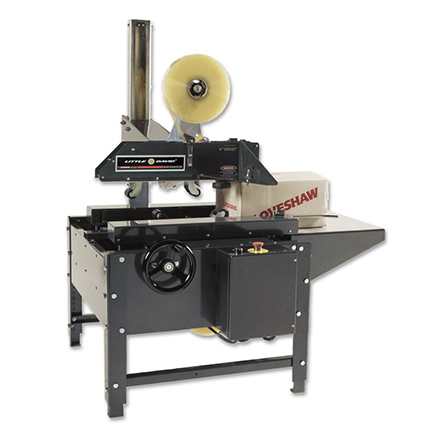

LD-3SB Case Sealer

This side belt driven tape sealer is recommended for dimensionally unstable cases, lightweight cases and cases as narrow as 3-1/4"*(with narrow case option). To get narrower than 3-1/4" a modification can be made to the machine by raising the drives for a 3" minimum width, but minimum height is increased to 9". This machine can be used for setting up empty cases with bottom tape only.

LD-3SB Case Sealer Specifications

Power Requirements:

  • 110 VAC, single phase, 60 cycle

Operating Speed:

  • Continuous belt drive; 76' per minute (21.9 m/min.)
    (production rate depends on box size & operator dexterity)

Weight:

  • 230 lbs. (104 kg) uncrated

Case Capacity: (with 2" wide CaseLocker ST® Cartridge)

  • Minimum:
    Height: 4-1/2" (114mm)  **9" (with raised drives)
    Width: 4 1/2" (114 mm) *3 1/4" minimum with narrow box option(NBO), **3" minimum with raised drives
    Length: 4" (76mm)

  • Maximum:
    Height: 24" (610mm)
    Width: 20" (508mm)
    Length: infinite

LD-3SB Case Sealer Features

  • Speed of 76 feet per minute
  • Ease of operation
  • Tapes cases from 4-1/2" (114mm) to 24" (610mm) in height
  • Uses pressure sensitive tape
  • Compact footprint
  • Minimal operator training required
  • Sealed drive system
  • CaseLocker ST® tape cartridge requires no lubrication
  • Self-centering belts
  • Single mast design allows clear access
  • Knife guard system of the CaseLocker ST® tape cartridge only allows the blade to be exposed only when the rollers have been depressed
