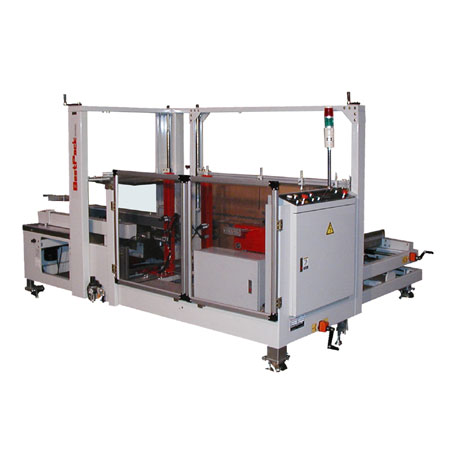

L-Type Vertical Feed Case Erectors

The Model ELVS is an innovative, high-performance carton erector/sealer. This erector is built for heavy usage with quick and simple carton size changeover. The adjustments for the hopper width, carton length, carton width, carton height are done with easy adjusting screw drives. The first three screw drive adjustments include counters for easy reference. There are no tools required for carton size changeover. If you are looking for a simple yet heavy built carton erector, this is a must-see machine.

L-Type Vertical Feed Case Erectors Specifications

Power Requirements • 110 Volts
Speed • 100 PSI, 10+ CFM
Speed • Up to 8 cartons/minute
Tape Head • Standard: 2″, Available: 3″
Shipping Weight • 1,400 lbs

Machine Dimensions
Length • 106.1″
Width • 86.22″
Height • 68″

Carton Min/Max Range
Length • 8.7″ – 20″
Width • 6.9″ – 18″
Height • 6.0″ – 20″

L-Type Vertical Feed Case Erectors Features

  • Quick and easy changeover
  • Size adjustment counter for the hopper width, carton length, and carton width
  • Heavy-duty construction
  • Maintenance Free, Oil-less Air Cylinders
  • Manual jog button for step-by-step activation of all movements
  • Malfunction alarm with two-colored light
  • No tape on carton alarm
  • Low hopper alarm
  • Suction cup system
  • L-Type/Vertical fed (carton is in standing position in the hopper)
  • Hopper capacity up to 100 cartons
  • Hopper is Power Driven
  • Output: Up to 8 cartons per minute
  • PLC Logic controlled
  • Standard 2″ tape head, 3″ available
  • Heavy-duty peg legs

L-Type Vertical Feed Case Erectors Photos
