High-Speed Case Erectors

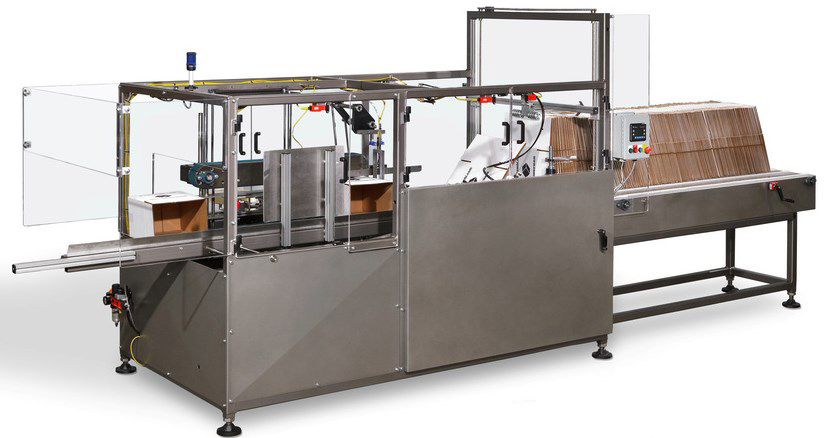

As a specialist in the case erector industry, Combi is constantly incorporating new technology into our impressive portfolio of equipment. The mechanical design Combi HCE case former offers high speed case erecting up to 35 cpm while achieving efficiencies in power and air usage and reducing overall machine size. Capable of erecting and sealing cases with adhesive tape or hot melt glue, the Combi HCE bottom case sealer is built with heavy-duty mechanical components and rugged welded tubular steel construction.

High-Speed Case Erectors Specifications

Electrical Service • 240 volt / 3 phase / 15A

Air Consumption • 1.5 cfm @ 80 psi

Case Discharge Elevation • 21″ – 26″

Electrical Service
HCE
Case Size Min
Length • 10″ – 254mm
Width • 6″ – 152mm
Height • 9.75″ – 248mm

Case Size Max
Length • 24″ – 610mm
Width • 16″ – 406mm
Height • 16″ – 406mm

Speed: Cases Per Minute
up to 35 cpm

HCE HM
Case Size Min
Length • 10″ – 254mm
Width • 8″ – 203mm
Height • 7.5″ – 191mm

Case Size Max
Length • 24″ – 610mm
Width • 16″ – 406mm
Height • 16″ – 406mm

Speed: Cases Per Minute
up to 35 cpm

HCE XL
Case Size Min
Length • 12″ – 305mm
Width • 8″ – 203mm
Height • 9.75″ – 248mm

Case Size Max
Length • 28″ – 508mm
Width • 20″ – 508mm
Height • 20″ – 711mm

Speed: Cases Per Minute
up to 35 cpm

High-Speed Case Erectors Features

  • Up to 35 cases per minute
  • Powered case magazine holds up to 450 cases
  • Dual belt drive case indexing
  • Positive case opening with opposing vacuum
  • Positive mechanical four flap closing
  • Low maintenance AC drive motors
  • Heavy duty welded tubular steel construction
  • Safety interlocked guarding
  • Allen Bradley components
  • 1 year comprehensive machine warranty on non-wear parts
