Drag Chain Conveyors

Alba’s standard drag chain conveyors, up to 4,000 lbs. capacity, are used to move product and pallets in and around manufacturing and/or warehousing facilities; especially product that will not convey well on rollers. Drag chain conveyors consist of heavy gauge formed chain rails with a welded steel frame, UHMW wear strips and adjustable heavy-duty structural steel supports, our conveyor can withstand the daily demands of a tough environment. Standard speeds are 30, 45 and 60 FPM. With a center drive configuration, the drag chain conveyor is reversible which provides maximum flexibility and control. To ensure maximum quality and easy installation, our conveyors are shipped fully assembled and are fully tested prior to shipment.

Drag Chain Conveyors Features

Product Features

  • Carrying Space: 2-Strand and 3-Strand are Standard
  • Applications: Can be used for Conveying Products that will not Convey well on Rollers
  • Capacity: Up to 6000 Lbs.
  • Configurations: All strands configured with in frame length, interlaced to allow for a transition overlap required when loading or unloading the conveyor.

Note: Specifications vary by model. Call for More Details.

Contact us for additional information.

Standard Features

  • Two (2) Year Warranty
  • 2 or 3 Strand Configurations
  • RC-80 & RC-60
  • Standard Drag Chain or Interlaced Chain Configuration
  • Formed Chain Rails with Welded Steel Frame Construction
  • Adjustable Heavy Duty Structural Steel Supports
  • Drives Sized to Match Loads by the Factory
  • 230-460/3/60 Primary Voltage
  • Center Drive Allows Reversible Operation
  • 30, 45, and 60 FPM Fixed Conveyor Speed
  • Chain Strands Guided with Machined UHMW Wear Strip
  • Painted Alba Blue with Safety Yellow Guards
  • Shipped Fully Assembled for Easy Installation
  • Conveyors Fully Tested Prior to Shipment

Optional Items

  • Tread Plates
  • Pallet Guide Rails
  • Photo Eyes & Pre-Wired Devices
  • End Stops
  • Fork Truck Barriers
  • Transition Rollers
  • Variable Frequency Drive (VFD) Rated Motors
  • Hot Dipped Galvanized Frames
  • Color Match Paint to Specifications

Drag Chain Conveyors Brochure

View Brochure

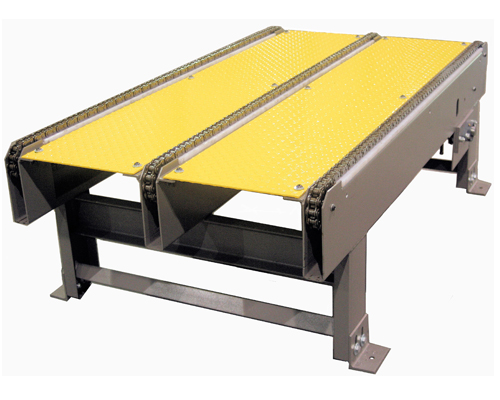

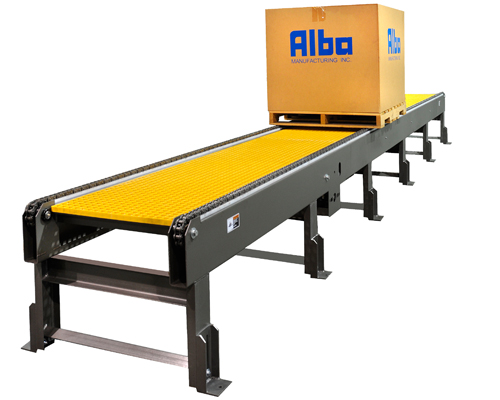

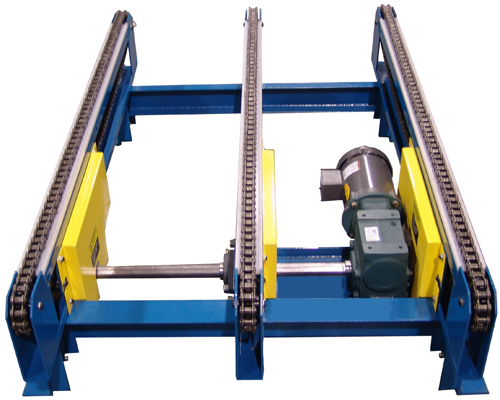

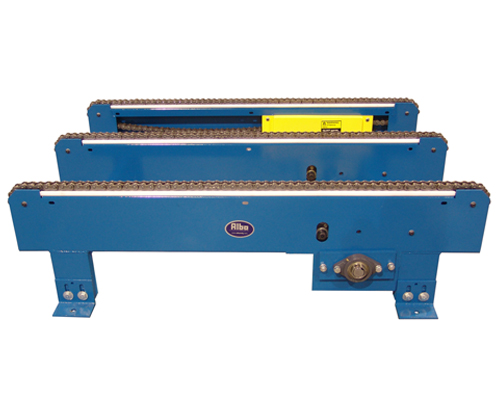

Drag Chain Conveyors Photos
