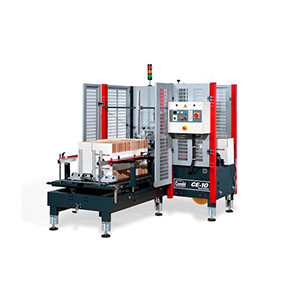

CE-10 Case Erector Bottom Case Sealer

The Combi CE-10 is an automatic carton sealer system that erects and bottom seals corrugated cases at speeds from 500 to 720 cases per hour. Our value-priced case erecting equipment is ideal for applications that require more throughput than manual case erecting can provide. This versatile carton erector system creates instant labor savings and increased production for a wide range of medium-speed applications. With industry-leading standard features like powered magazine and low-case and low-tape alarms, and fast no-tool changeovers, the CE-10 carton erector is a simple, operator-friendly solution for your packaging line.

CE-10 Case Erector Bottom Case Sealer Specifications

Model CE-10

Case Size Min
(L x W x H)

 8 x 6 x 5"
(203x152x127mm)
Case Size Max
(L x W x H)		 17.5" x 13.5" x 17.5"
(445x343x445mm)
Speed: Cases per minute* 10 cpm
Overall System Footprint 5'8” x 7'6"
(172 x 228cm)

* Speeds are case size dependent

CE-10 Case Erector Bottom Case Sealer Features

STANDARD FEATURES

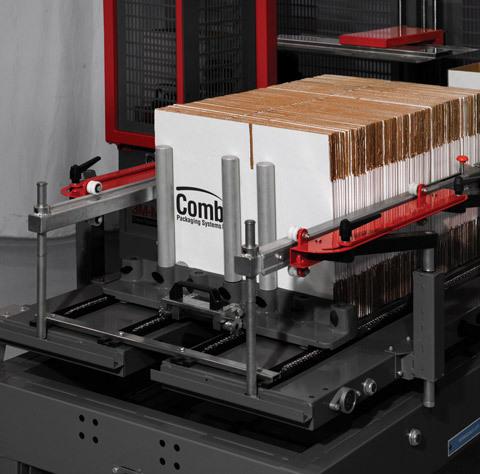

  • High-capacity powered case magazine
  • Small footprint design minimizes floor space
  • Low-case & low-tape alarms with stack light assure continuous operation
  • Safety interlocked guarding restricts access to moving parts

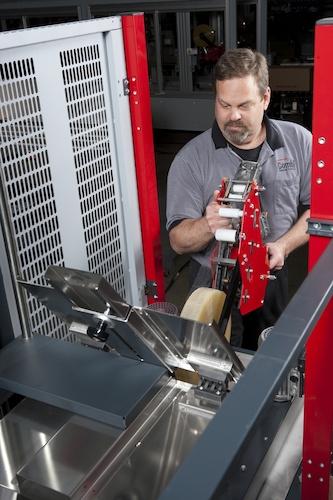

  • 2 inch 3M Accuglide™ Tapehead
  • 10 case per minute operation for medium speed packaging lines
  • CE international certification

Additional Features

  • Heavy-duty welded steel construction
  • Right or left-hand machine execution
  • Allen Bradley PLC control
  • Labor-saving efficient design
  • Low-tape & low-case alarm with stack light
  • Heavy-duty vacuum pump
  • Safety disconnect
  • Three-year factory warranty*

BENEFITS

  • Labor-saving design
  • Square, tightly sealed cases
  • Easy operation
  • Fast changeovers

OTHER

  • Electrical Service: 110 volt / 1ph / 20Amp
  • Case Discharge Elevation: 22" to 30"
  • Air Consumption: 80 PSI, 2 CFM @ 10 cases per minute
  • *warranty excludes normal wear items. see manual for details
