Sigma Products > LD-7 Case Sealer

LD-7 Semiautomatic Uniform Case Sealer

The LD-7 Case Sealer is an economical solution for businesses requiring a top and bottom case taper. This system is built to handle large runs of uniform cases or those applications that require infrequent case size changes with a small footprint. Ideal for those seeking an alternative to expensive labor costs. The LD-7 also replaces the tedious task of hand taping cases and the use of unsafe machinery. This model requires very low maintenance and operates with single hand tightening adjustments.

LD-7 Semiautomatic Uniform Case Sealer Specifications

Power Requirements:

  • 115 - 220 Volts, 60 cycle, single phase
    Note: Other voltages available. Contact Loveshaw for details.

Operating Speed:

  • Continuous belt drive; 80' per minute (24.4 m/min.)
    (production rate depends on box size and operator dexterity)

Weight:

  • 196.5 lbs (89 kg) uncrated

Closure Material:

  • Pressure sensitive tape

Case Capacity:

  • Length: 4-1/2"(114mm) - Infinite
    Width: 4-1/2" (114mm) - 21" (508mm)
    Height: 4-1/2" (114 mm) - 24" (610 mm)

LD-7 Semiautomatic Uniform Case Sealer Features

  • 1 Year all components
  • 2 Years Gear Reducer
  • 3 Years Cartridge
  • Tapes cases from 4-1/2" (114mm) to 24" (610mm)
  • Portable compact design
  • Plug-in operation
  • Requires minimal operator training
  • Sealed drive system
  • CaseLocker ST® tape cartridge requires no lubrication
  • Single mast design allows clear access
  • Knife guard system of the CaseLocker ST® tape cartridge allows the blade to be exposed only when the rollers are depressed

LD-7 Semiautomatic Uniform Case Sealer Video

LD-7 Semiautomatic Uniform Case Sealer Brochure

View Brochure

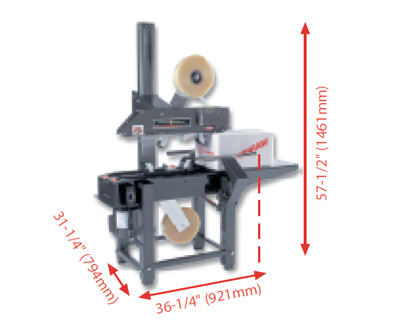

LD-7 Semiautomatic Uniform Case Sealer Photos
