Maren Propak 60

Maren Propak 60 Specifications

Platen Force: 187,000 lbs.

Platen PSI: 109 PSI

Operating Pressure: 4200 PSI

Oil Reservoir: 150 Gallons

No-Load Cycle Time: 28 seconds

Bale Size: 30″ H x 60″ W x 45″ L

Baler Shipping Weight: 22,000 lbs.

Feed Opening: 54″ x 40″

Baler Length: 209″

Baler Width: 80″

Baler Height: 73″

Maren Propak 60 Features

• 54” X 40” (60) – 54” X 70” (60S) Feed Opening – is the largest in its class. Allows unbroken boxes to fall in without obstruction.
• 109 PSI. (60) – 104 PSI. (60S) Platen Force Pressure – Platen forces are rated by actual force and not an“up to” or superficial number extracted from a maximum hydraulic system psi.
• 400 Brinell Wear Liners – promote long service life and are completely replaceable.
• Smart Bale Technology – allows operator to select bale sizes perfect for loading trucks or sea containers.
• Smart Shear – features a 27-point chassis shear blade, progressive platen shear and utilizes special bale chamber geometry to all but eliminate shear jams.
• Easy Tie System – allows for easy feed of bale wire without debris obstructing wire travel path. In addition, the Tie System is easier to operate and faster than other manual tie systems, including hydraulically assisted tie systems.
• Gravity-actuated Retaining Dogs – assist in keeping highly resilient material from expanding back into the feed chamber after compression.
• Automatic Bale Decompression – after a bale is tied off and complete in the chamber, the main ram automatically decompresses prior to allowing the operator to open the bale door.
• Streamlined Hydraulic System – exceeds performance of competitors 30hp. balers by utilizing high efficiency pumps and minimizing hydraulics components, hoses and leak points.
• Interlocking Chassis Construction – of ½” & ¾” steel plate interlock with the other chassis components using tab and slot construction; this results in baling stresses being bared on the strength steel, not the welds.
• Non-Ferrous Door – shares same design as larger non-ferrous balers for ultimate in durability.
• Oversized Cylinder Mounts – offer unmatched strength and durability.
• Remote Mounted Controls – for operation and bale ejection are mounted near the front of the baler, giving the operator unrestricted view of the bale while ejecting a completed bale.
• 1-2-3 Warranty – ProPAK60 -1 year labor, 2 year parts, and 3 year structure and cylinder.
• Warranty – ProPAK60S -1 year on parts and labor.

Maren Propak 60 Video

Maren Propak 60 Brochure

View Brochure

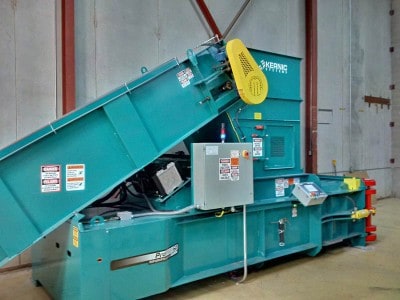

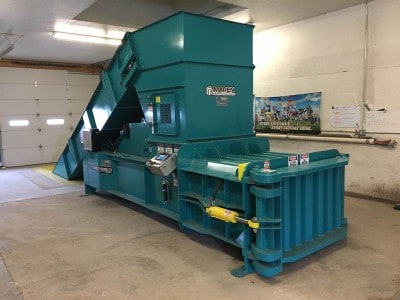

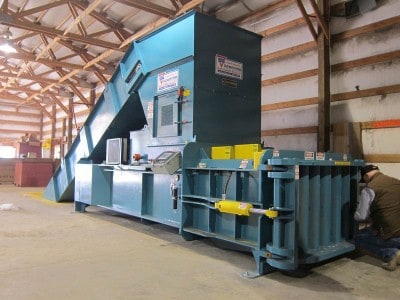

Maren Propak 60 Photos
