Sigma Products > Automatic Uniform Side-drive

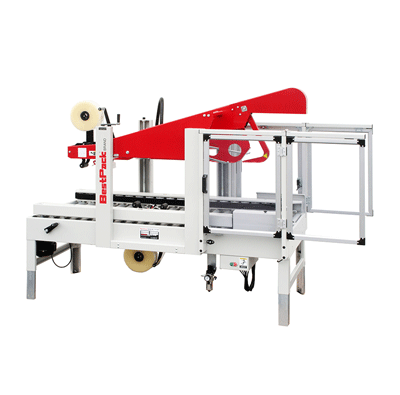

Automatic Uniform Side-Drive

The BestPack AS Series is an operator-free carton sealer designed to meet the needs of uniform in-line carton closure applications. Designed with a solid four column support structure and using dual motor side belt technology, the AS closes all four top flaps and seals the top & bottom of the carton, using 45-60 PSI and 4-5 SCFM of air.

Our AS line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

Automatic Uniform Side-Drive Specifications

  • SPEED Up to 57 Cartons/min.
  • POWER REQUIREMENTS110 Volts 60 Hz
  • AIR REQUIREMENTS45-60 PSI, 4-5 SCFM
  • SHIPPING WEIGHT650-760 lbs.
  • MACHINE DIMENSIONS(77.7") x (33.8") x (69.0")
  • CARTON RANGE(6.0" - 27.5") x (6.0" - 20.0") x (5.5" - 20.0")
  • CONVEYOR HEIGHT AND ADJUSTMENT(22.5" - 30.0")

Automatic Uniform Side-Drive Features

Operator Free Design

• In-Line Carton Closure

• Designed for Uniform Carton Applications

• Automatic Flap-Folding

• Adjustable Bed Height from 22.5” to 30.0”

• Height/Width Adjustments on Either Side of Carton Sealer

• Interlock Safety Gates in the Kicker Station • Upper Side Compression Unit

• Tape Roll Lengths: 1,000 yd., 1,500 yd., 2,000 yd.

• Heavy Duty Frame

• UL Approved Electrical Parts

• Capable of Interchanging 2” or 3” Tape Heads

• Electrical On/Off Box can be Mounted on Either Side of Carton Sealer

Automatic Uniform Side-Drive Photos
