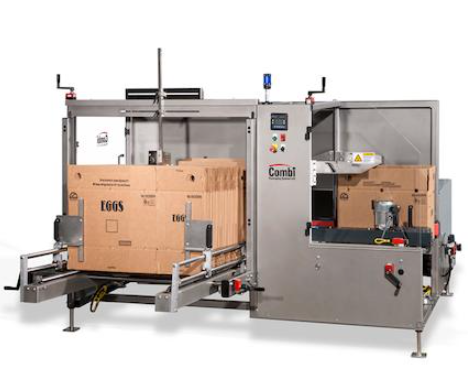

2-EZ® XL Series Case Erector for Large Cases

The 2-EZ® XL series case erecting equipment is a no-compromise solution for erecting and bottom sealing large cases. Our cost-effective systems feature heavy duty components, positive case opening and transfer, and either belt driven or servo driven carriage assemblies for perfect cases every cycle. The 2-EZ® XL series is the perfect box erector system for increasing productivity and throughput for your large case packing process.

2-EZ® XL Series Case Erector for Large Cases Specifications

Model 2-EZ® XL 2-EZ® XL HS 2-EZ® XXL  2-EZ® XXL HS

Case Size Min
(L x W x H)

13 x 10 x 6"
(330x254x152mm)
13 x 10 x 6"
(330x254x152mm)
21 x 15 x 9"
(533x381x229mm)
21 x 15 x 9"
(533x381x229mm)
Case Size Max
(L x W x H)
24 x 20 x 18"
(610x508x457mm)
24 x 20 x 18"
(610x508x457mm)
32 x 26 x 30"
(813x660x762mm)
32 x 26 x 30"
(813x660x762mm)
Speed: Cases Per Minute* 10 cpm 15 cpm 8 cpm 12 cpm

2-EZ® XL Series Case Erector for Large Cases Features

  • EZ Load Walk-In powered 50" case magazine
  • Heavy-duty 2"x3" welded tubular steel framework
  • 3M Accuglide™ 2" tape head
  • Dual belt-driven (2-EZ XL, 2-EZ XXL) or servo-driven (2-EZ XL HS) carriage assemblies
  • Safety back up photo eye with 20' cord and mounting bracket
  • Allen-Bradley components
  • Right hand or left-hand execution

ELECTRICAL SERVICE

  • 115 volt / single phase / 20 amp
  • 240 volt / three-phase / 20 amp

AIR CONSUMPTION

  • 80 PSI clean air supply. Air consumption is case size-dependent.
